Exterior Park Trackless Aluminium Auto Entrance Electric Cantilever Gate

Product Categories
Hongmen Advanced Technology Corporation
Contact Now

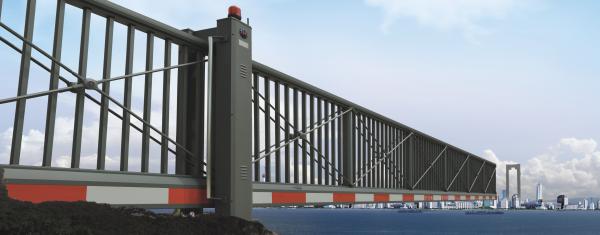

Exterior Park Trackless Aluminium Auto Entrance Electric Cantilever Gate

  • 1
  • 2

Place of Origin : China

Brand Name : Hongmen

Certification : CE

Model Number : P703B-G

MOQ : L=3.5m * H=1.5m

Packaging Details : Plywood + Iron Rack

Delivery Time : 10 Working Days

Payment Terms : TT With 50% Deposit, 50% Payable Upon Goods Dispatch

Supply Ability : 30.000m / month

Contact Now

Trackless Aluminium Alloy Automatic Sliding Gates , Entrance Electric Cantilever Gate

Features:

  1. Fully Aluminium Alloy Made
  2. CE Certified.
  3. NO Welding
  4. Anti Rust Material
  5. EMO Button (Emergency Stop Button).
  6. Trackless Operation.
  7. Industrial Grade Aluminium Alloy (6063-T5).
  8. Wireless Remote Control (433MHz).
  9. Powder Coating
  10. Dispatch in Modules Form (Transportation Friendly).
  11. Smart Power Outage Clutch.
  12. Anti- Collision IR Sensor.
  13. Anti- Climb Photo Cell.

Specifications:

Operating Voltage 220 VAC ±10% (50Hz ~ 60Hz)
Operating Temperature ˗ 25˚C ~ + 75˚C
Environmental Humidity ≤ 90%
Operating Speed 15m/min, 23m/min, 31m/min
Motor Voltage Rating 36 VDC
Motor Power Rating 300W
Motor RPM 1800r/min
IP Rating IP54
Insulation Grade F
Motor Output Torque 1.6 N.m
Current (A) 15A
Speed Reduction Ratio 15 to 1
Wireless Remote Distance

50m

Parts Material Hardness Specsification
Hw mm
Main Slide Bar 6063-T5 13-15˚ 260*170*d4-9
Upper Beam 6063-T5 10-13˚ 120*65*d2-3
Gate Frame 6063-T5 10-13˚ 98*60*d1.2
Upright Post 6063-T5 10-13˚ 180*100*d3
Control Box 6063-T5 10-13˚ 230*130*d3.5
Pull Rod 6063-T5 10-13˚ 20*ɸ8
Traingle Rod Beam SUS304 N/A 60*40*d1.5
Pickets 6063-T5 10-13˚ 38*25*d1
Gridding Vertical Beam 6063-T5 10-13˚ 14*8.3
Gridding Horizontal Beam 6063-T5 10-13˚ ɸ8*d1.5
Enhance Pickets 6063-T5 10-13˚ 45*32*d1
